ObsidianWire™

Custom 4-Way for Tele® 250k

NZ $109.00

or make 4 interest-free payments of $27.25 NZD fortnightly with Afterpay More info

Shipping:
Calculated at Checkout

tick.pngFREE NZ SHIPPING  tick.pngSATISFACTION GUARANTEED


Current stock: 0
Description

Description

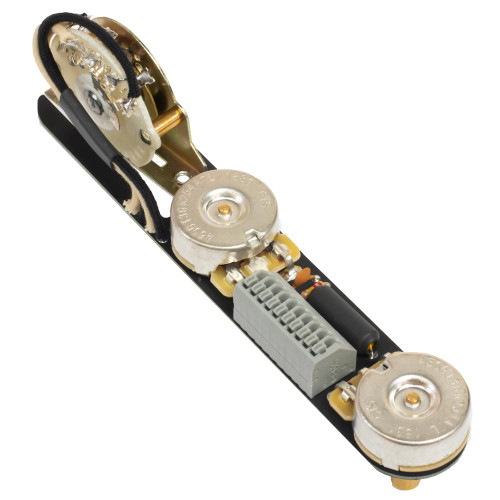

The ObsidianWire Custom 4-Way harness for Telecaster® gives you all the fun of the traditional vintage Tele®, whilst adding a tasty fourth switch position to make it scream.

Best of all, these are super easy to install, and allow for unlimited solder-less pickup changes with ObsidianWire Plug, Play and Enjoy connectors.

(Requires Three Wire - Neck Pickup Mod * See Notes Below)

The Custom 4-way harness follows a tried and true formula, giving your Tele the familiar master tone, master volume and three positions that we all know and love. Plus a little extra.

Kick your Tele into the new fourth position and your old work horse becomes a beast with the neck and bridge pickups working in series to provide a more powerful humbucker like tone. You can use this position for stronger rhythm and screaming leads.

Custom 4-Way for Tele Positions:

    1: Neck & Bridge Pickup in Series (Humbucker Like Tone)
    2: Neck Pickup Only
    3: Neck & Bridge Pickup in Parallel (Traditional Tele)
    4: Bridge Pickup Only

To make your tone crystal clear at lower volumes we also include an ObsidianWire Custom Spec Treble Bleed Mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

We build ObsidianWire Pro-Wired Electronics using the world’s best craftsmanship and components:

  • 2 x ObsidianWire Custom Select Pots (Crafted by CTS) 250k (+/-6%) (Matched to +/-2%) SOLID SHAFT
  • 1 x Genuine Oak Grigsby 4-Way Switch
  • 1 x Genuine Switchcraft J11 Mono Output jack
  • 1 x ObsidianWire Custom Select 150 Series Polyester Film Capacitor ( 0.047uf) (Hand Tested to +/-10%)
  • 1 x ObsidianWire Premium Selected Volume Mod / Treble Bleed - Improved Volume Taper & Clarity
  • 1 x Pre Printed & Easy to Follow Wiring Diagram
  • 1 x Endless Customer Support

COMPATIBILITY

ObsidianWire Pro-Wired Electronics for Telecaster, are designed to be a direct fit for American and Mexican series Fender® Telecasters. They can also be used to upgrade Japanese Fender & Squier guitars with some adjustments. In the least, you will need a new genuine Fender USA control plate and new 1/4" knobs to fit the higher grade electronics. We cannot guarantee that these will fit any other guitar.

Note: aftermarket control plates do not have the correct Fender spec spacing and as such will not fit our electronics. We recommend a genuine Fender plate – Part Number: 099-2058-000

At ObsidianWire we use US spec 1/4" Solid shaft controls. We recommend that you check your knobs are the correct size and replace them if necessary.

*THREE WIRE NECK PICKUP MOD - To properly ground your neck pickup you will need to add an additional wire to it. This is an easy mod & we provide the instructions and wire to do the job but it does require a solder joint. Please allow for this when buying this upgrade.

Reviews

Reviews (4)

James Tengblad 1st Sep 2018

Tele 4 way wiring harness from ObsidianWire 250 K

Had fun building three guitars from scratch in the last few months , they all of have ObsidianWire harnesses , next two are taking shape , they will have the same treatment , a well built clean system , easy to install , i highly recommend their products . Thank you ! Plus the presentation is similar to what you get once you plug in : brilliant !

Michael 25th Apr 2018

Obsidian Wire 4way Tele control plate

This is the second Obsidian Wire 4 way Tele unit I have ordered from you. The first one went into my Squire Vintage Modified Tele, already an exceptional guitar. The luthier I had instal it was no stranger to the 4 way Tele mod but said this was the best put together unit he had seen. It was super easy to install and made the guitar growl perfectly. I can’r see myself owning any Tele without one fitted.
